Rugged ceramic and glass constration
E xcellent environmental integrity
R oHS Compliant Product
一次性貼片保險絲
5MT FU5E 50603 5ERIE5
0603 size(1.6*0.8*0.5mm)
Rugged ceramic and glass constration
E xcellent environmental integrity
R oHS Compliant Product
E LECTRICAL CHARACTERSTICS: 電氣特性;
| % of AmpereRating 額定電流的% | Blowing Time熔斷時間 |
| 100% | 4 hours minimum |
| 200% | 120 seconds max |
PPROVALS:
Recognised under the Components
Program of Underwriters Laboratories
Voltage Interru pti ng Resistance
ECHNICAL PARAMETERS/技術參數
| Catalog Symbol | Amepere Rating | Marking | Voltage Interru pti ng Resistance | Interru pting Resistance | Rating DC Rating ohms |
| S0603 500mA | 500mA | F | 32V | 35A | 0.95 |
| S0603 750mA | 750mA | G | 32V | 35A | 0.6 |
| S0603 1A | 1A | H | 32V | 35A | 0.16 |
| S0603 1.5A | 1.5A | K | 32V | 35A | 0.085 |
| S0603 2A | 2A | N | 32V | 35A | 0.055 |
| S0603 2.5A | 2.5A | O | 32V | 35A | 0.04 |
| S0603 3A | 3A | P | 32V | 35A | 0.03 |
| S0603 3.5A | 3.5A | R | 32V | 35A | 0.027 |
| S0603 4A | 4A | S | 32V | 35A | 0.02 |
| S0603 5A | 5A | T | 32V | 35A | 0.011 |

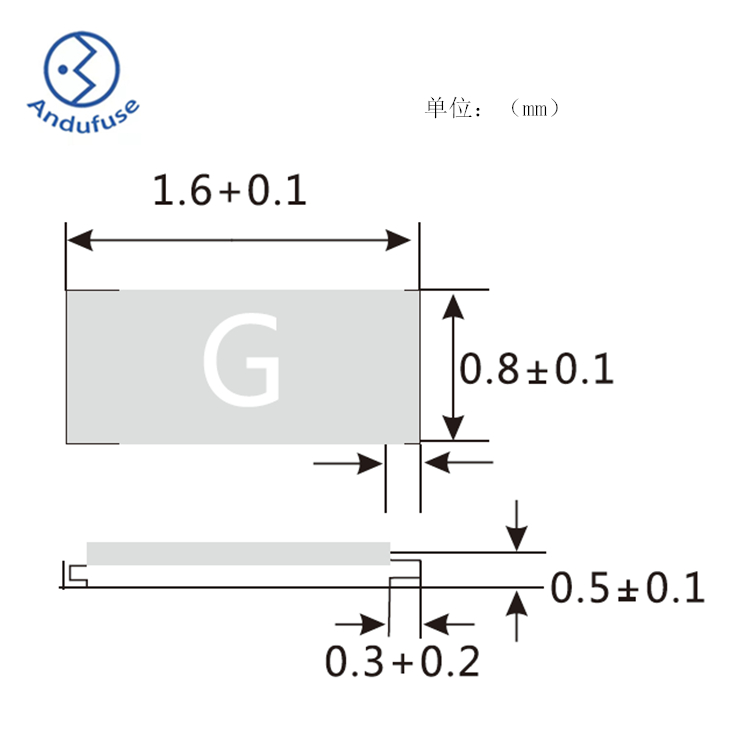

產品尺寸
產品圖片
DC interrupting Rating-Measured at designated votage,time constant of less than 50 microseconds,battery source
2.Typical Melting I2T Measureed with a battery bank at rated DC Voltage,10x-rated current ,time constant of calibrated
circuit less than 50 mìcroseconds.
3.It is recommended that fuse be mounted with the white ceramic(marking) side facing up.
4.An operati ng current of 95% or less of rated cu rrent is recommended with further derati ng required at elevated
ambient temperatures.
5.Please contact Andu for the other Ampere Rating ,Engineering Specification,additional technical and environmental
data.
